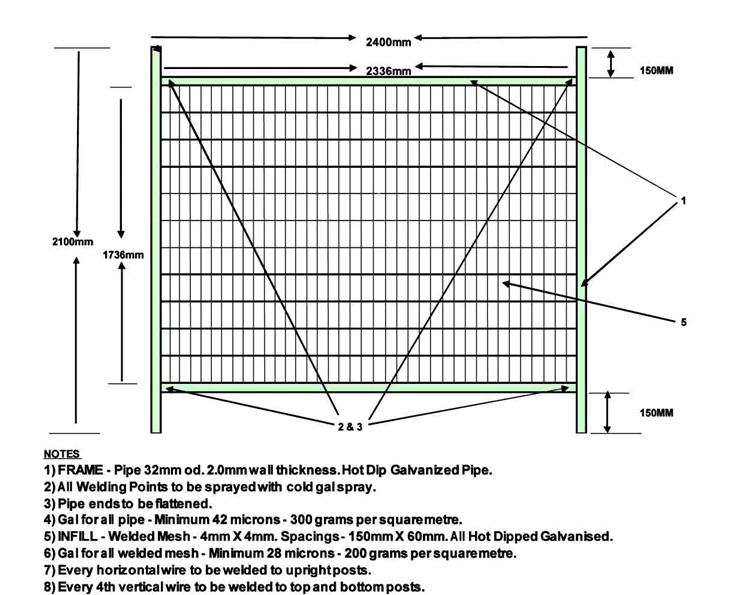

Temporary security fencing etc. Temporary fence panel is a indispensable part of completely temporary fencing system that consist of temporary infill welded mesh panel ,outside frame pipe according to AS4687-2007 Stipulated and defined the infill welded mesh panel zinc thickness is minium28 microns/200g. Pipe minimum 42Microns/300g.
1. Material: High quality low carbon steel wire, high carbon steel wire, galvanized iron wire (Q195 & Q235)
2. Surface Treatment: Electronic galvanized, Hot-dipped Galvanized, Powder Coated
3. Application: Construction sites, Temporary protection for factory goods, Traffic road fence, Major sports events or activities, Temporary isolation, Large playground and so on
|Production||Australia construction temporary fence mesh hot sale|
|Panel height*length||2.1*2.4m, 2.0*2.2m, 2.1*2.6m, 1.8*2.4m, etc|
|Wire diameter||3mm, 4mm etc|
|Mesh opening||60*150mm, 75*75mm, 75*100mm, 60*75mm,etc|
|Frame pipe||Diameter:32mm, 38mm, 42mm, etc Wall thickness:1.5mm, 2.0mm ,etc|
|Zinc||Heavy duty:Pipe 300g/m²,42 microns; Wire 200g/m², 28 microns|
Light duty:Pipe 100g/m²;Wire 100g/m²
|Clamp||Center space:75mm, 100mm Thickness:4mm|
|Feet||Blow moulded: 600*220*150mm(26.5kgs) Injection moulded: 560*245*130mm(31kgs)|
Metal feet is also available
|Other wire diameters are also available upon customers’ specific requirements.|
Temporary fence stays are used to support the temporary fence in high wind situations or on long runs to ensure the fence once erected remains secure.
Our specialist installation guys will access the site and install stays if required.
Fence stays are hot dipped galvanized to Australian Standard – 42 Microns and are attached to the mesh panels by 2 clamps and weighted down by concrete filled plastic feet.
Packing and Loading
1.Fence panel: Panels with be stacked on steel pallet first, and then use nylon belt and plastic film to fasten the pallet.
2.Fence Feet: Every fence feet is covered by cap then with plastic film, then metal pallet.
3.Clip: Plastic film+carton box.
