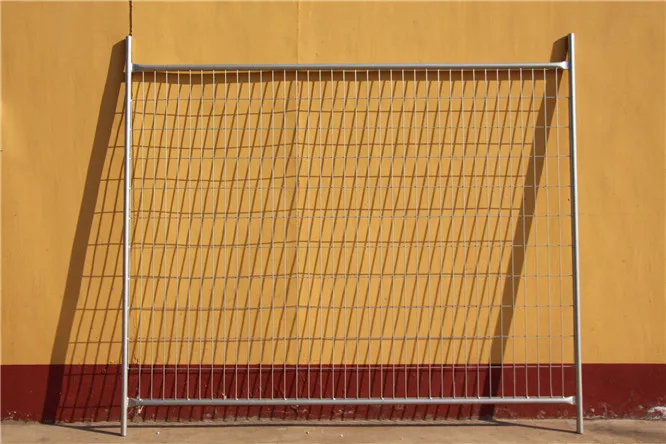

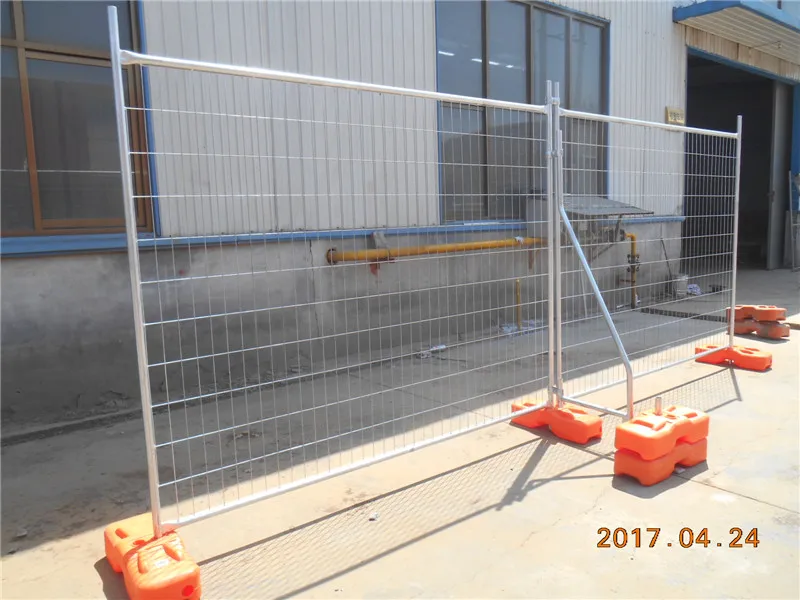

OD48mm tube temporary fence panels

ProductionAustralian temporary fencing
Panel height*length2.1*2.4m, 2*2.2m, 2.1*2.6m, 1.8*2.4m, etc
Wire diameter3mm, 4mm etc
Mesh opening60*150mm, 75*75mm, 75*100mm, 60*75mm,etc
Frame pipeDiameter:32mm,  42mm, 60mm etc
Wall thickness:1.5mm, 2.0mm ,etc
ZincHeavy duty:Pipe 300g/m²,42 microns;Wire 200g/m², 28 microns
Light duty:Pipe 100g/m²;Wire 100g/m²
ClampCenter space:75mm, 100mm
Width:40mm
Thickness:4mm
FeetBlow moulded:600*220*150mm(26.5kgs)
Injection moulded:560*245*130mm(31kgs)
Metal feet is also available
BraceHeight:1.8m
Pipe:32mm

2019  hot sale  temporary fence (30 years' manufacturer&exporter)
2019  hot sale  temporary fence (30 years' manufacturer&exporter)

Advantage

Anti -climb mesh infilled

360° hand weld between the vertical and horizontal pipe

Horizontal pipe ends crimped for increased strength

Above Industry Benchmark in thickness of galvanising

offer good corrosion-resistance, anti-aging property,

acid and alkali resistance, smooth and neat surface and comfortable touch

Easy setup and take down.

2019  hot sale  temporary fence (30 years' manufacturer&exporter)

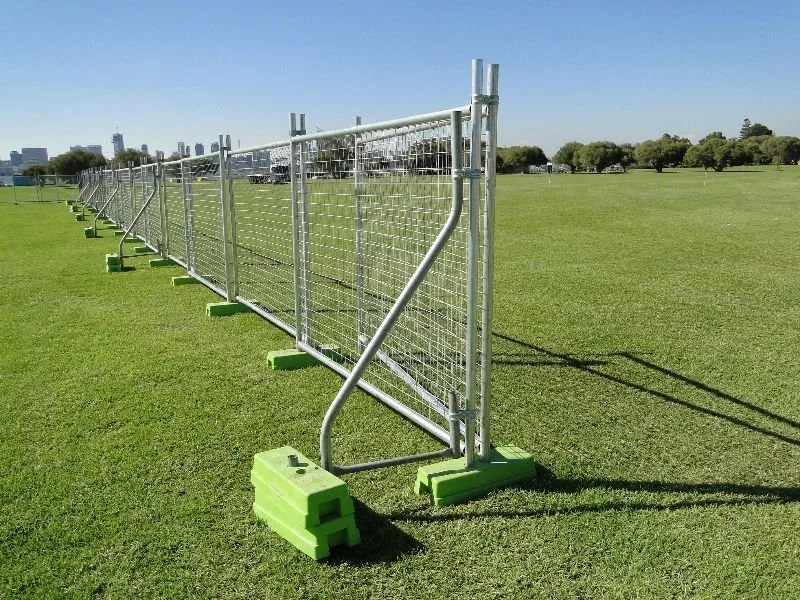

Application

2019  hot sale  temporary fence (30 years' manufacturer&exporter)
48mm tube temporary fence
